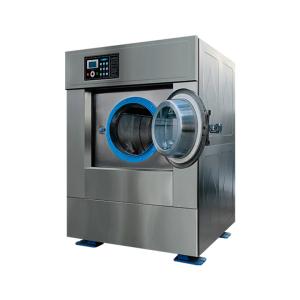

China 2025 Hot Sale Durable Fully Automatic 20kg Washer Extractor PLC Controller Real-time Monitoring High Efficiency Washing Machine wholesale

2025 Hot Sale Durable Fully Automatic 20kg Washer Extractor PLC Controller Real-time Monitoring High Efficiency Washing Machine

Name: 2025 Hot Sale Durable Fully Automatic 20kg Washer Extractor PLC Controller Realtime Monitoring High Efficiency Washing Machine
Brand: AoZhi
Price: 1 USD

Ask Latest Price

Video Channel

Place of Origin :Shanghai, China

Brand Name :AoZhi

production capacity :100

warranty :1 Year

dimension(l*w*h) :1110*1150*1570

power(w) :2.2

voltage :380V, 220V, 110V

weight (kg) :700

video outgoing-inspection :Provided

machinery test report :Provided

core components :motor, PLC, Engine

washing capacity :18-22 kg

Drum volume :220 L

Drum size :750*500 mm

running speed :32-800 Rpm/min

Inverter power :2.2 KW

Electric heating power :6/9 KW

Cold/hot water pipe diameter :DN20 mm

Drain outlet pipe diameter :DN50 mm

size :1110*1150*1570 mm

Contact Now

Add to Cart

View Product Description

2025 Hot Sale Durable Fully Automatic 20kg Washer Extractor PLC Controller Real-time Monitoring High Efficiency Washing Machine

Feature：

1.PLC operating system, automatic control/manual control optional, real-time monitoring and viewing of the washing process。 2.Driven by variable frequency high-speed motor to realize stepless speed change and reduce vibration 3.Adopt sports suspension design, with spring buffering and damping shock absorption function when moving 4.Soft-mount construction eliminates the need for foundation fixing。

Product Specifications	Unit	XGQ-15	XGQ-20	XGQ-25	XGQ-30
Washing weight	kg	13-16	18-22	23-25	25-30
Volume rate	L	155	220	250	280
Cylinder	￠mm	630*500	750*500	800*500	800*600
Speed	RPM/min	32-800	32-800	32-800	32-800
voltage	V	AC110/220/380/415/440/50-60Hz
Motor power	Kw	1.5	2.2	2.5	3
Inverter	Kw	1.5	2.2	3	4
Electro-thermal	Kw	6	6/9	6/9	6/9
Cold/Hot water interface	DN	20	20	20	20
Drainage interface	DN	50	50	50	50
Noise	dB	＞70	＞70	＞70	＞70
Dim	mm	100011001500	110011501570	116011501570	130012501700
Weight	Kg	600	700	750	800

1. PLC control system, English, Chinese or any language can be added as needed. 2. Fast 3 groups of direct access, 20 groups of optional programs in memory, which can be edited and stored according to the user's ideas. 3. The washing process is monitored in real time, and the data can be modified to suit different types of fabrics. 4. There are two modes of manual and automatic to choose from.

1. Made of high-quality stainless steel, with a service life of more than ten years; 2. Soft installation structure, can be used directly on the level ground; 3. The door is transparent glass, you can check the washing status very well; 4. Safe door handles and locks to ensure the safety of users.

1. Standard electric box in line with European standards; 2. The motor adopts the bottom suspension design, which can prevent the safety of the motor when water leaks; 3. Roller bearing, easy disassembly, easier maintenance; 4. You can choose cold water and hot water for washing.

1. The mesh hole is ￠3mm, which can better clean the fabric; 2. SUS stainless steel barrels will not rust for 100 years;
